Campus Infrastructure
Object Detection
with YOLOv11n

Group Members
Tahamid Hossain 20220001801
Sumaid Bin Omar 20220001454
Parth Aggarwal 20220001200
Rufaid Bin Omar 20230003171
Arham Bin Azad 20220001121
 YOLOv11n · 2.6M params CUDA · RTX 4060 Batch 04 · 2026-04-24 100 Epochs

Campus Infrastructure
Object Detection
with YOLOv11n

End-to-end pipeline for detecting four campus assets — projectors, whiteboards, fire extinguishers, and door signs — using a curated 800-image dataset with perfect class balance, achieving near-saturating accuracy on safety-critical classes.

Comparative Analysis Batch 04 vs Batch 05 · updated custom dataset YOLOv11s Comparative Analysis Batch 04 vs 05 vs 06 · baseline + dataset + model uplift
0%
mAP@0.5
Test set · 80 images
0%
mAP@0.5:0.95
Tight IoU eval
1.000
Precision
Zero false positives
0%
Recall
Macro average
01 · Pipeline

End-to-End Workflow

Seven notebooks take raw dataset exports through aggregation, splitting, health-checking, training, evaluation, inference, and export — each stage's artefacts feeding the next.

NB01
Aggregate
200 (image, label) pairs per class from Roboflow/Kaggle exports → JPEG uniformity
→
NB02
Remap + Split
Global ID assignment · class ID normalisation · stratified 70/20/10 split
→
NB03
Health Check
Class balance, box distribution, leakage detection, dimension stats
→
NB04
Train YOLOv11n
100 epochs · SGD · AMP FP16 · mosaic augmentation · RTX 4060
→
NB05
Evaluate
Held-out test split · mAP, P/R curves · confusion matrix · qualitative preds
→
NB06
Live Inference
Single image · batch · video · webcam modes against best.pt
→
NB07
ONNX Export
Opset 12 · dynamic axes · onnx-simplifier · 50% size reduction
↗
02 · Dataset

Data Collection & Preparation

2.1 · Data Collection — NB01 ▶

Raw images sourced from Roboflow, except doorsign2–4, which were custom-captured from HUB campus door signs, annotated, and prepared by the team. NB01 aggregated exactly 200 (image, label) pairs per class into data/aggregated/<class>/, re-encoding all images to JPEG.

Class Available Pairs After Cap Source
● projector 319 200 Projector1, 2, 3 (Roboflow)
● whiteboard 200 200 Single Roboflow export
● fire_extinguisher 848 200 Kaggle train/valid/test
● door_sign 240 200 doorsign1 (Roboflow); doorsign2–4 (custom — HUB campus, annotated by team)
2.2 · Stratified Split — NB02 ▶

NB02 merged all four classes into a unified Ultralytics-compatible dataset with global ID re-indexing and class ID normalisation (0=projector, 1=whiteboard, 2=fire_extinguisher, 3=door_sign). Stratified 140/40/20 split per class.

Class Train Val Test Boxes/img (train)
● projector 140 40 20 0.82
● whiteboard 140 40 20 1.09
● fire_extinguisher 140 40 20 1.19
● door_sign 140 40 20 1.86
Total 560 160 80 —
💡
door_sign averages ~1.9 boxes/image across all splits — exit + number placards commonly co-occur. projector falls below 1.0 boxes/image, indicating more background frames.

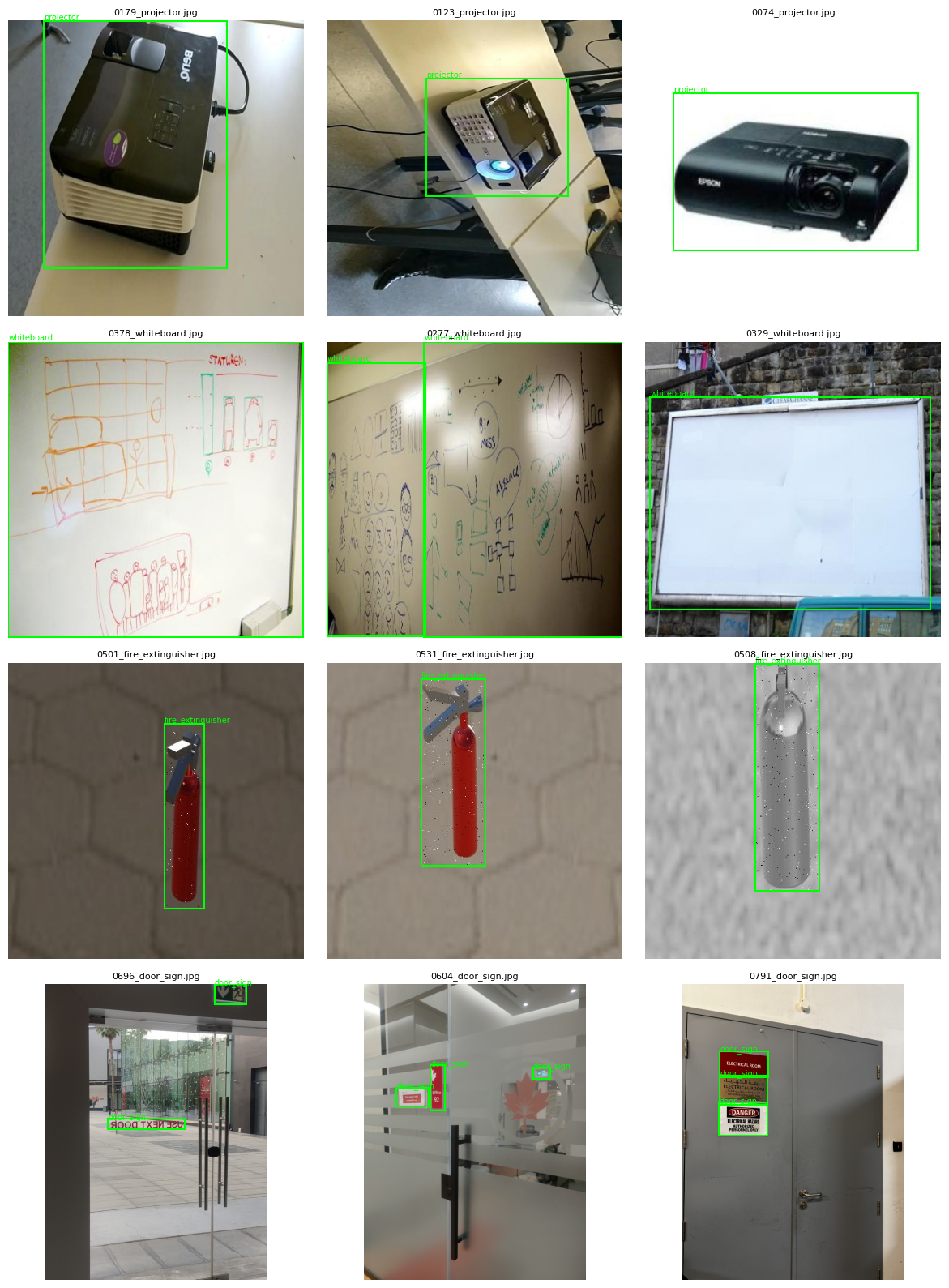

Spot-check grid of class samples
Figure 1. 3×4 spot-check grid of class samples drawn from the split dataset.
2.3 · Dataset Health Check — NB03 ▶
Train images560
Val images160
Test images80
Total boxes997
Empty labels4.4%
Tiny boxes0
Leakage0 dups
Median dim640×640
Class distribution bar chart

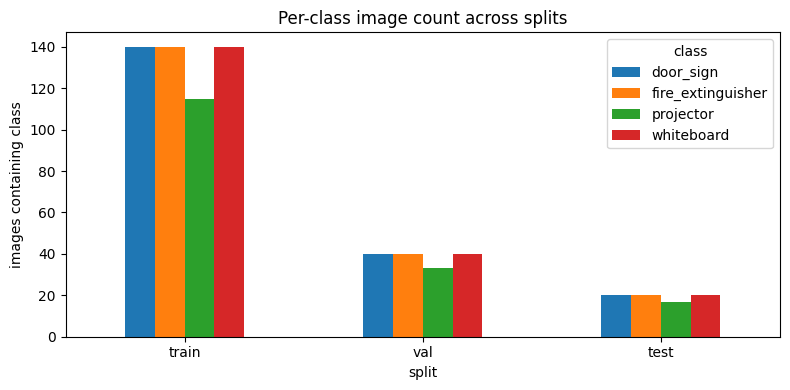

Figure 2. Per-class image counts by split.

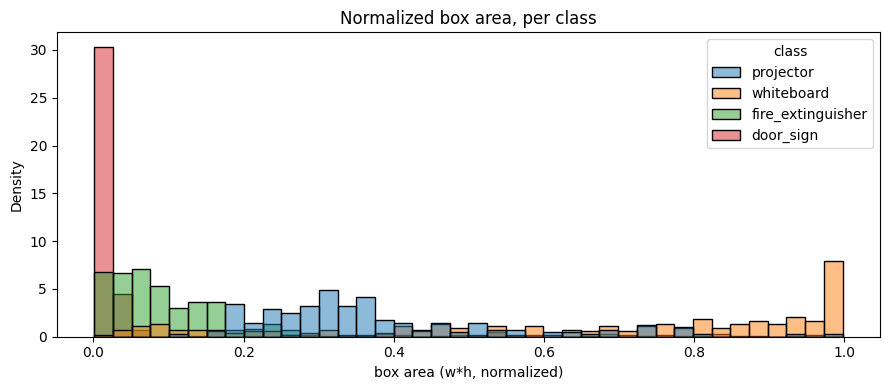

Box area histogram
Figure 3. Normalised box area distribution per class.
Image dimension scatter
Figure 4. Width vs height scatter — 800 images. Cluster at (640,640) dominates; sparse high-res outliers from Kaggle fire extinguisher photos.
03 · Methodology

Model Selection & Training Config

Architecture Comparison

Architecture Params COCO mAP Latency (T4) Verdict
Faster R-CNN (ResNet-50) ~41 M 42.9 ~47 ms Too slow
SSD MobileNetV2 ~3.4 M 22.1 ~1.2 ms Low ceiling
YOLOv8n 3.2 M 37.3 ~1.47 ms Strong baseline
YOLOv11n 2.6 M 39.5 ~1.55 ms ✓ Selected
YOLOv11s 9.4 M 47.0 ~2.46 ms +acc, +params
YOLOv11m 20.1 M 51.5 ~4.70 ms Not edge
🎯
Why YOLOv11n? 2.6M params — 0.6M fewer than YOLOv8n with 2.2 points higher COCO accuracy. C3k2 + SPPF backbone with depthwise convolutions exports cleanly to ONNX. Transfer learning from COCO provides critical feature initialisation for our small 560-image training set.
Training Configuration ▶
Weightsyolo11n.pt
Epochs100
Patience15
Batch size16
Image size640×640
OptimizerSGD
lr0 / lrf0.01 / 0.01
Warmup3 epochs
AMPTrue (FP16)
Seed42
IoU thresh0.7
DeviceCUDA:0

Loss Weights

Box (CIoU)7.5
Classification (BCE)0.5
DFL1.5
Data Augmentation ▶
Mosaic1.0 (off last 10 ep)
RandAugmentEnabled
Random Erasing0.4 prob
Horizontal flip0.5 prob
Scale jitter±50%
Translation±10%
HSV hue0.015
HSV sat/val0.7 / 0.4
MixUp/CutMixDisabled
Vertical flipDisabled
🔀
Mosaic concatenates 4 training images into a single 640×640 tile — effectively quadrupling context diversity and forcing the model to handle partially visible objects. Disabled for the final 10 epochs to consolidate clean features.
04 · Architecture

YOLOv11n — Model Structure

Single-stage anchor-free detector with task-aligned assignment (TAL) — eliminates anchor tuning and improves small-object recall.

Input
RGB Image · 640×640
↓
── Backbone ──
C3k2 Blocks
Compact CSP bottleneck
2×depthwise conv
SPPF
Spatial Pyramid Pooling – Fast
Multi-scale context
↓
── Neck ──
PANet
Bidirectional feature fusion
P3/8 · P4/16 · P5/32
↓
── Head ──
Classification Branch
BCE loss · 4 classes
Regression Branch
DFL · CIoU · anchor-free
↓
TAL Assignments → NMS → Detections
Task-Aligned Learning · IoU threshold 0.7
Parameters2.6 M
ParadigmOne-stage · anchor-free
COCO mAP@0.5:0.9539.5
T4 latency~1.55 ms/img
05 · Training

Training Curves & Convergence

Model peaked at epoch 60 (val mAP@0.5 = 0.9489). Val box loss flattened around 0.84 while train loss continued decreasing — mild overfitting, correctly halted by patience=15.

Val mAP over Epochs
Box Loss over Epochs
Epoch Train Box Loss Val mAP@0.5 Val mAP@0.5:0.95
1 1.068 0.199 0.122
10 ~0.88 ~0.650 ~0.450
30 ~0.77 ~0.880 ~0.680
60 (best) 0.744 0.9489 0.7251
100 (final) 0.511 0.938 0.735
Training curves

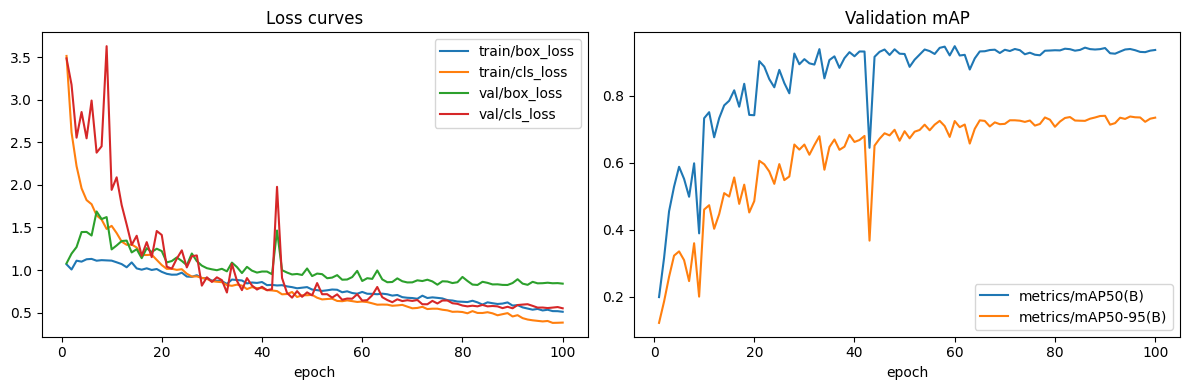

Figure 6. Training curves — box + classification loss on train/val (left); mAP@0.5 and mAP@0.5:0.95 on val set across 100 epochs (right).
Label distribution

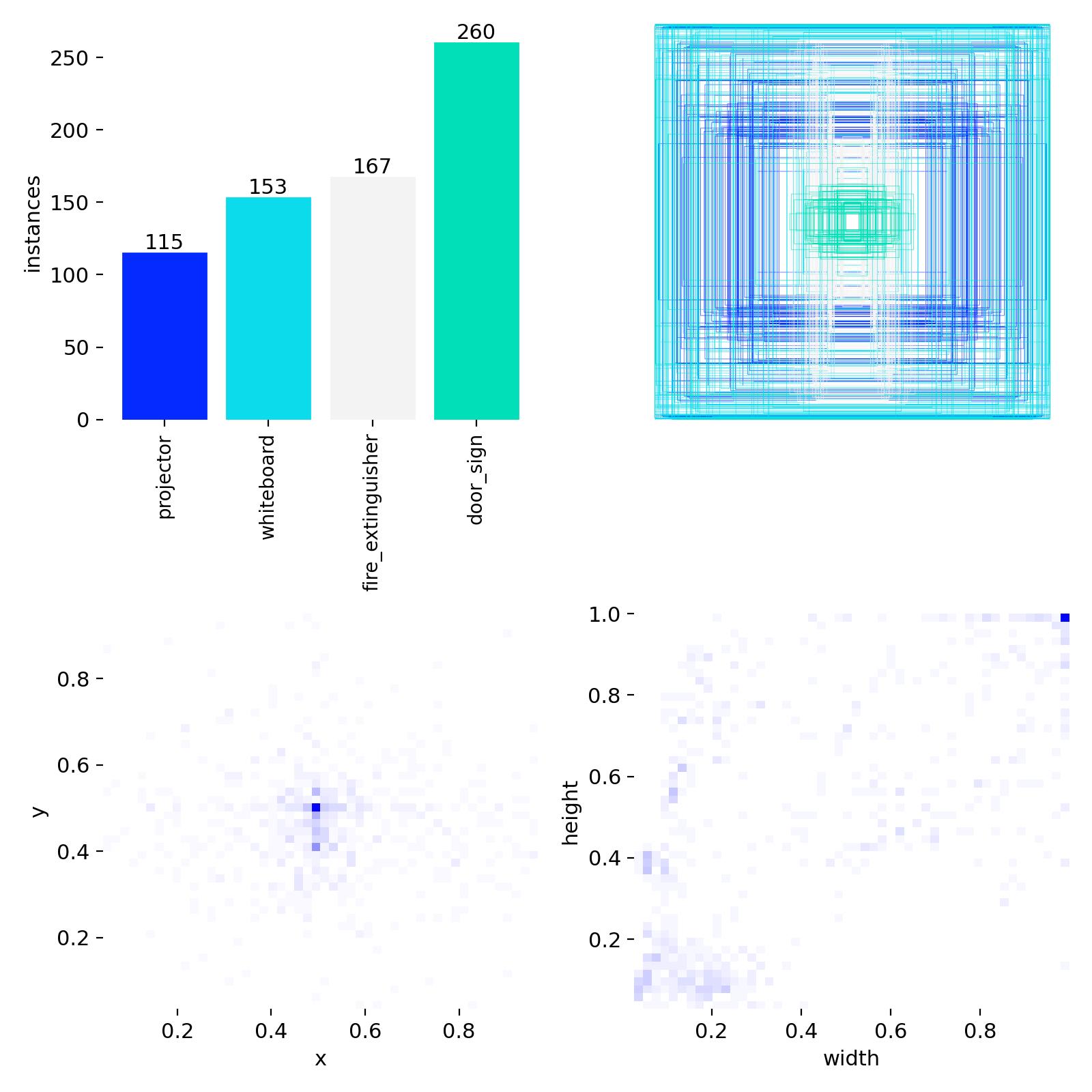

Figure 5. YOLO-generated label distribution: class frequency (left) and bounding-box spatial heatmap (right).

Validation Batch — Ground Truth vs. Predictions

Ground Truth Val batch 0 labels

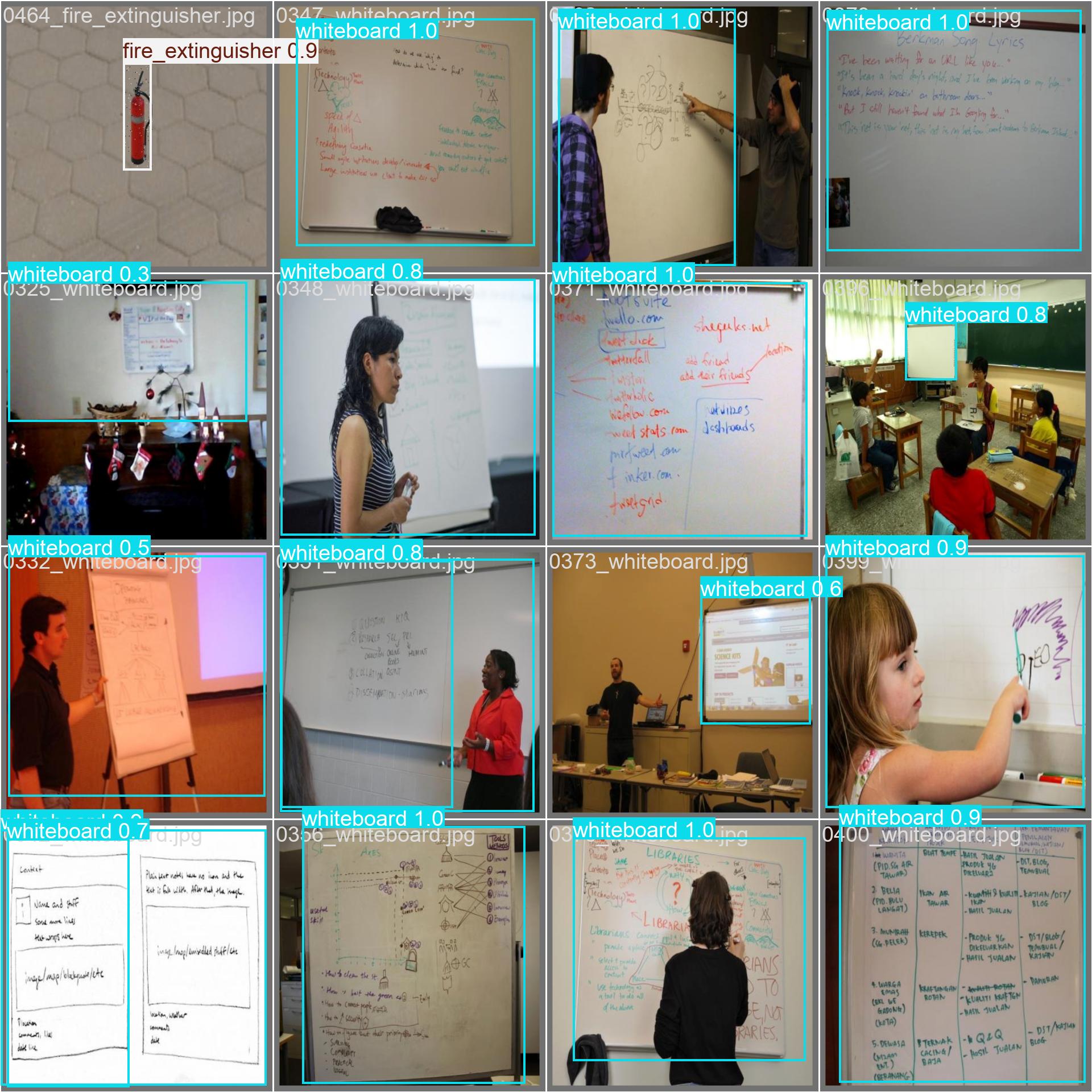

Predictions Val batch 0 predictions

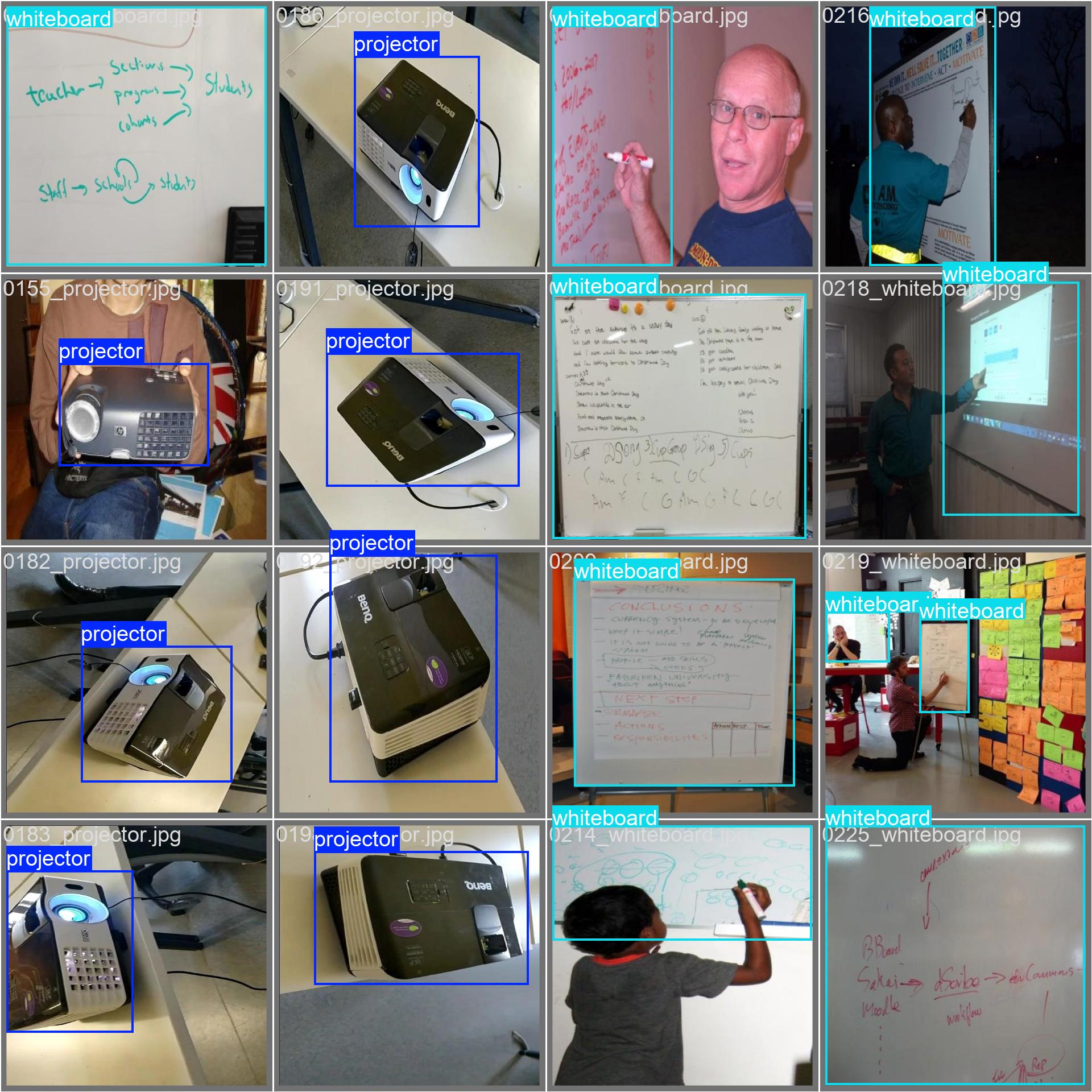

Ground Truth Val batch 1 labels

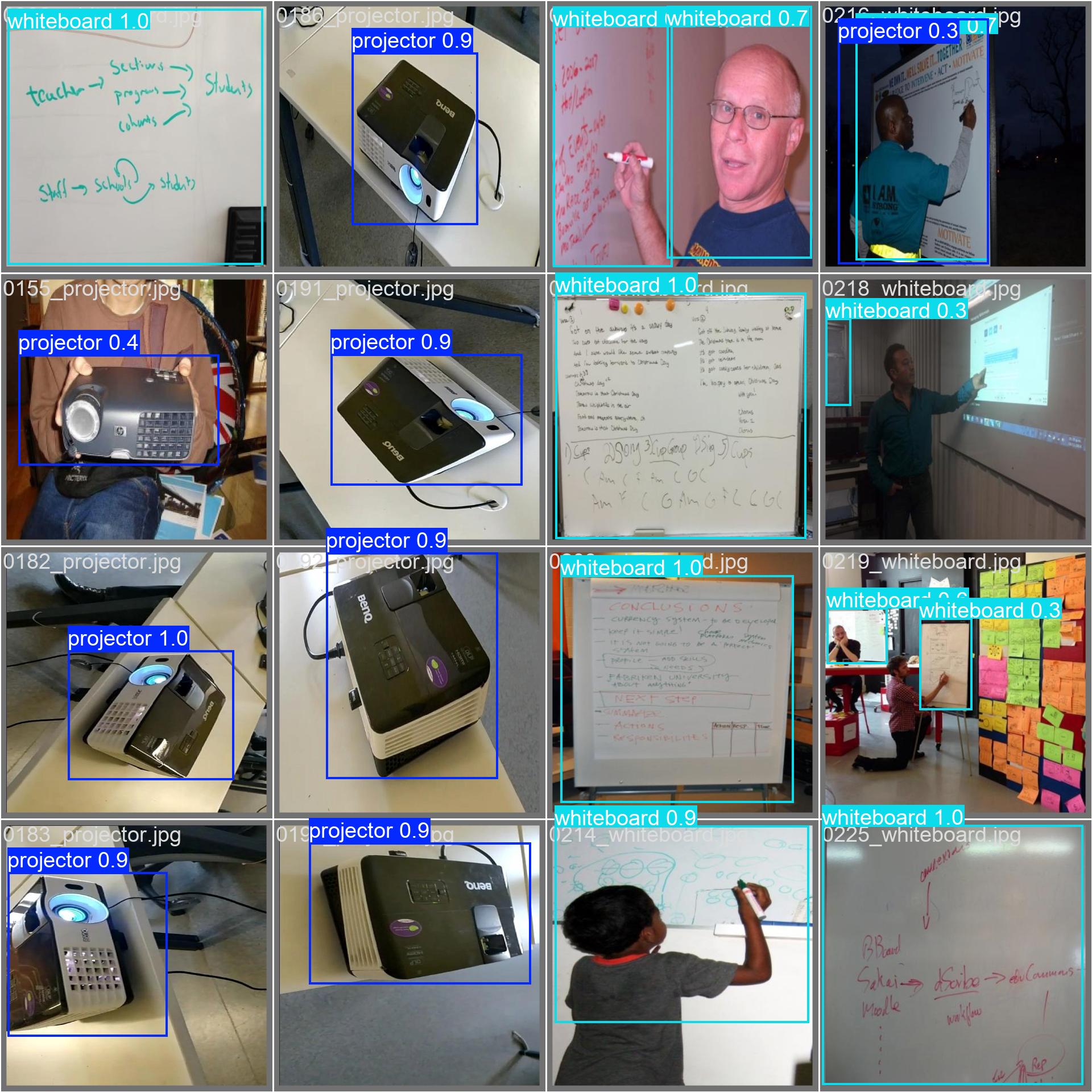

Predictions Val batch 1 predictions
Ground Truth Val batch 2 labels
Predictions Val batch 2 predictions

Training Batch Mosaic

Training batch mosaic
Figure 7. Example mosaic training batch (batch 0) — augmented 4-tile compositions at 640×640.

Post-Training Sanity Check

Sanity predictions grid

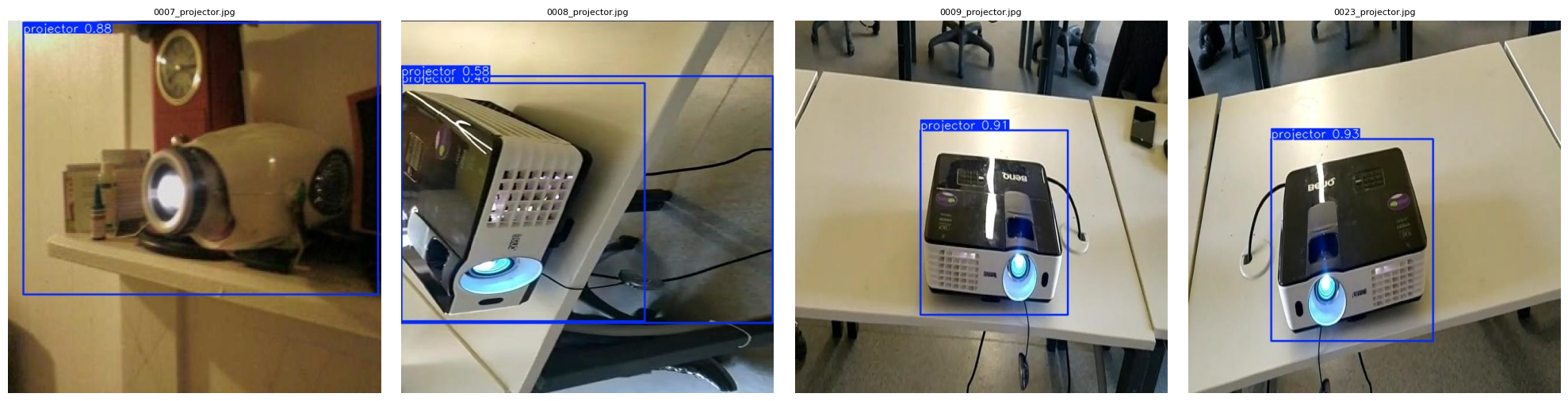

Figure 9. 1×4 sanity inference grid — correct class assignment with high confidence scores confirmed.
06 · Results

Test-Set Evaluation

Evaluated exclusively on the held-out test split (80 images, 102 boxes) using best.pt at conf=0.25, IoU=0.5.

0%
mAP@0.5
0%
mAP@0.5:0.95
100%
Precision (macro)
0%
Recall (macro)

Per-Class Performance

● projector
P: 1.000 R: 0.804 mAP@0.5: 0.896
mAP@0.5
89.6%
mAP@0.5:0.95
72.9%
Recall
80.4%
● whiteboard
P: 1.000 R: 0.763 mAP@0.5: 0.876
mAP@0.5
87.6%
mAP@0.5:0.95
77.7%
Recall
76.3%
● fire_extinguisher
P: 1.000 R: 0.957 mAP@0.5: 0.978
mAP@0.5
97.8%
mAP@0.5:0.95
90.5%
Recall
95.7%
● door_sign
P: 1.000 R: 0.922 mAP@0.5: 0.982
mAP@0.5
98.2%
mAP@0.5:0.95
77.3%
Recall
92.2%

Confusion Matrices

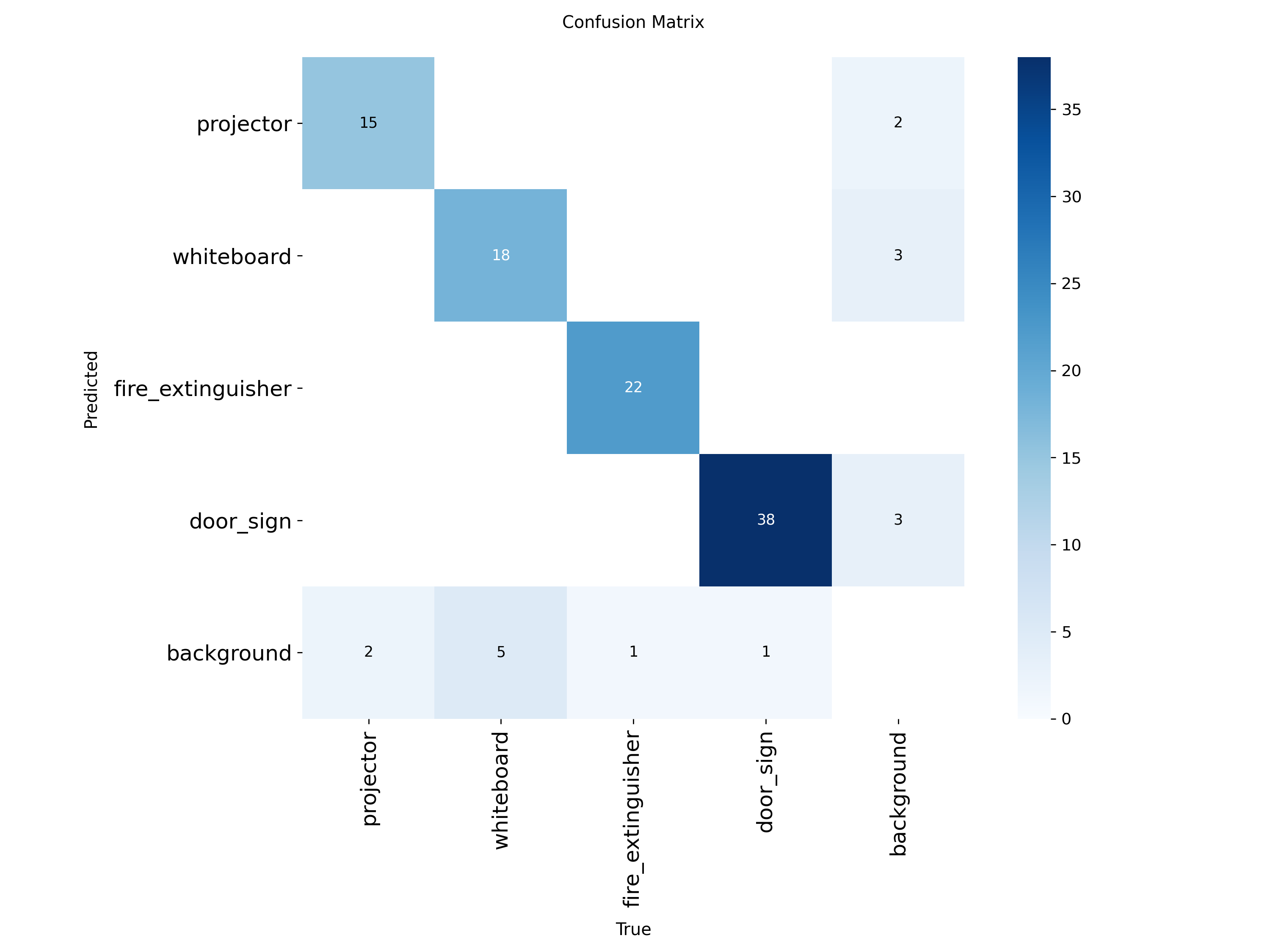

Confusion matrix raw counts
Figure 11. Raw-count confusion matrix (4×4 + background).

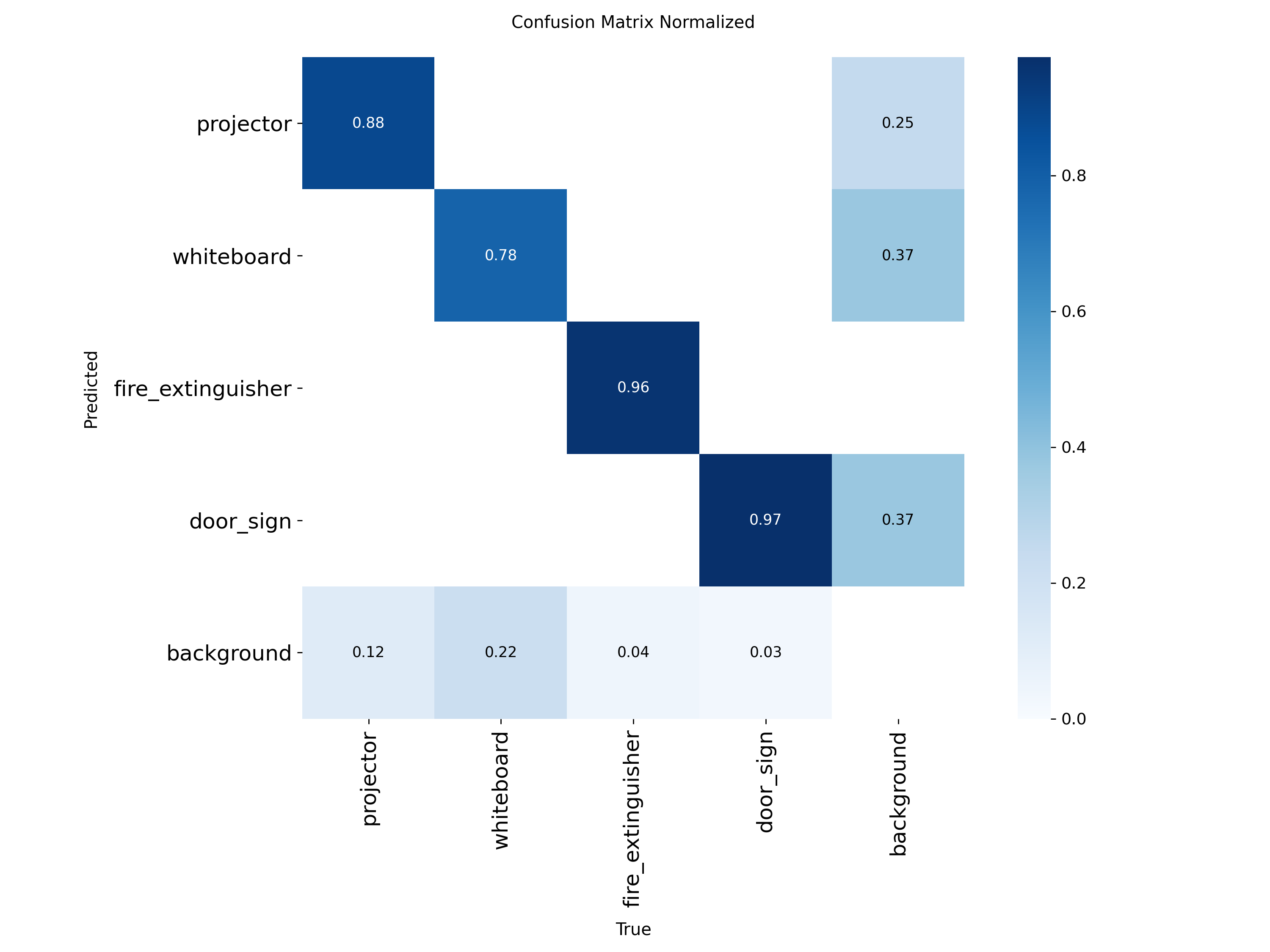

Confusion matrix normalised
Figure 12. Row-normalised confusion matrix — diagonal dominance confirms class separability.
Custom confusion matrix

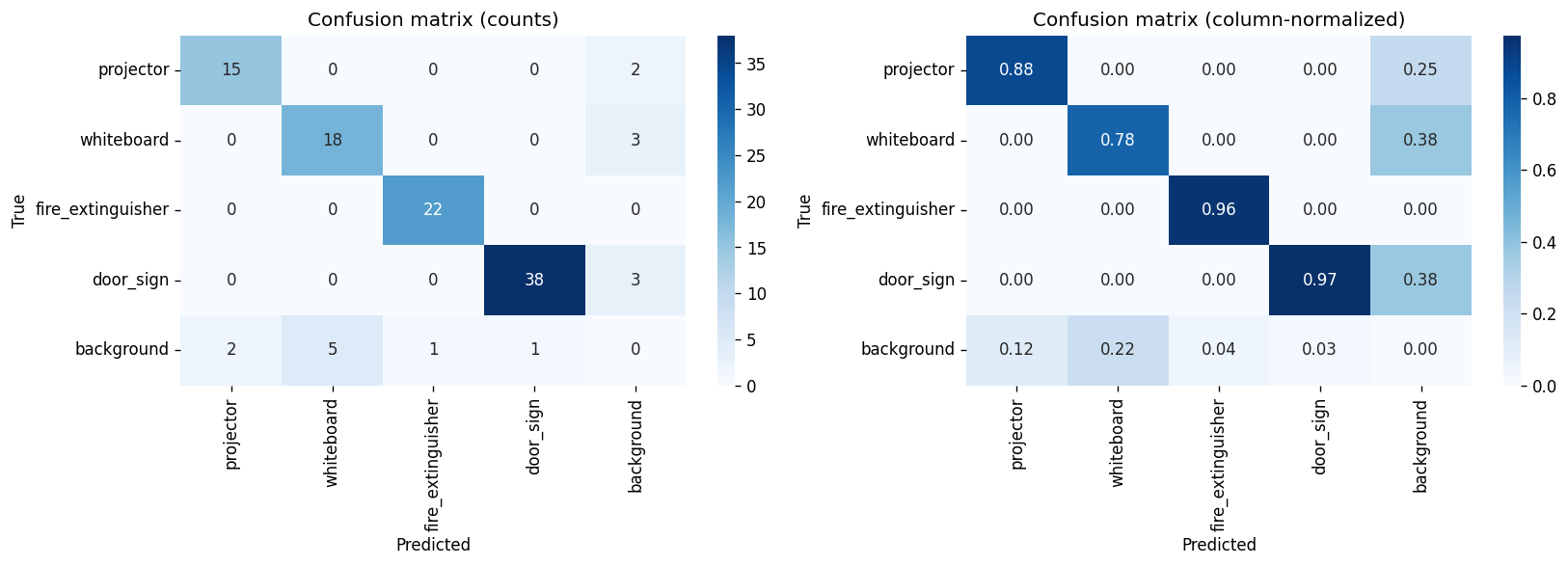

Figure 13. Custom dual-panel Seaborn confusion matrix.

Precision–Recall & Threshold Curves

PR curve

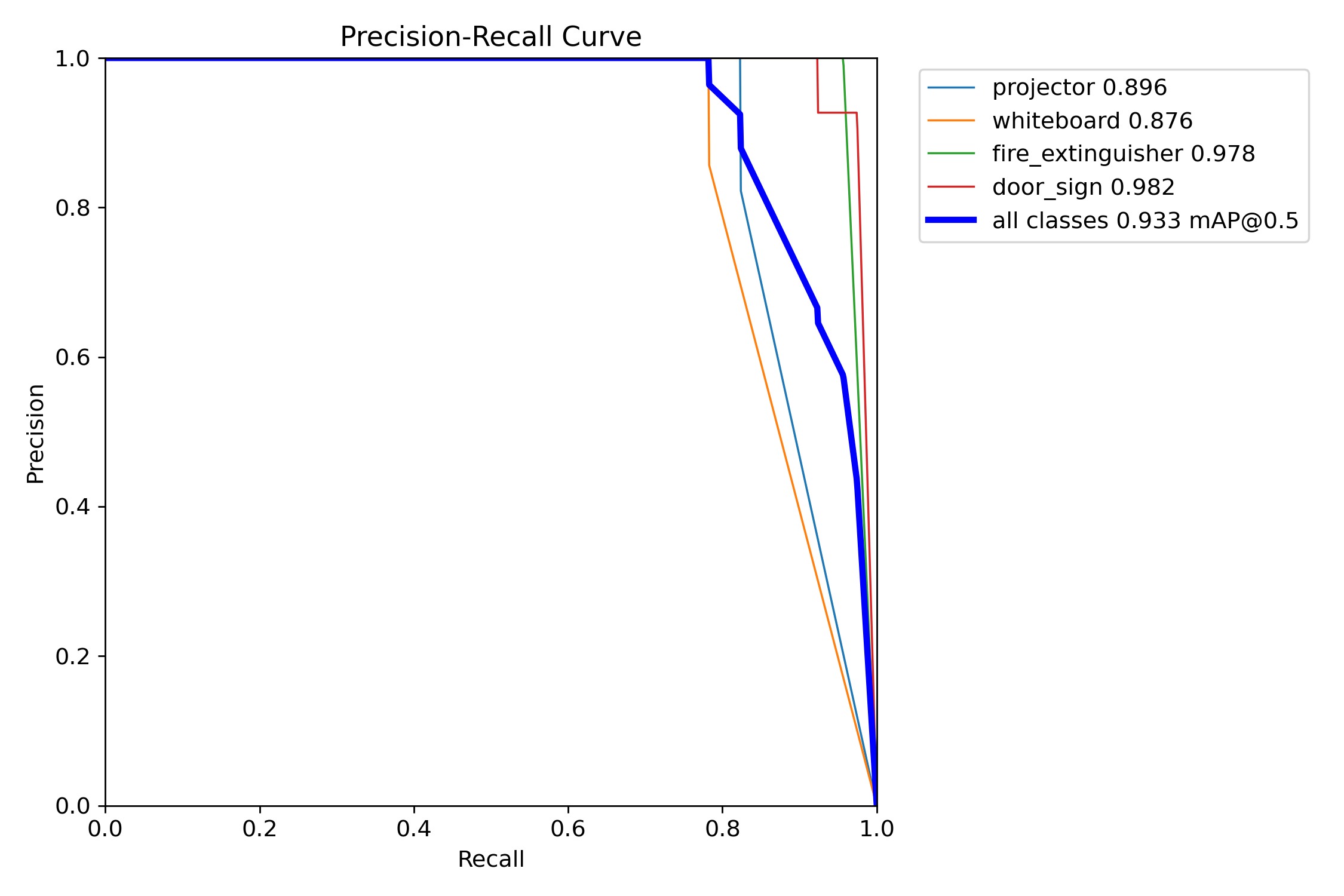

Figure 14. Precision–Recall curves per class.
F1 curve

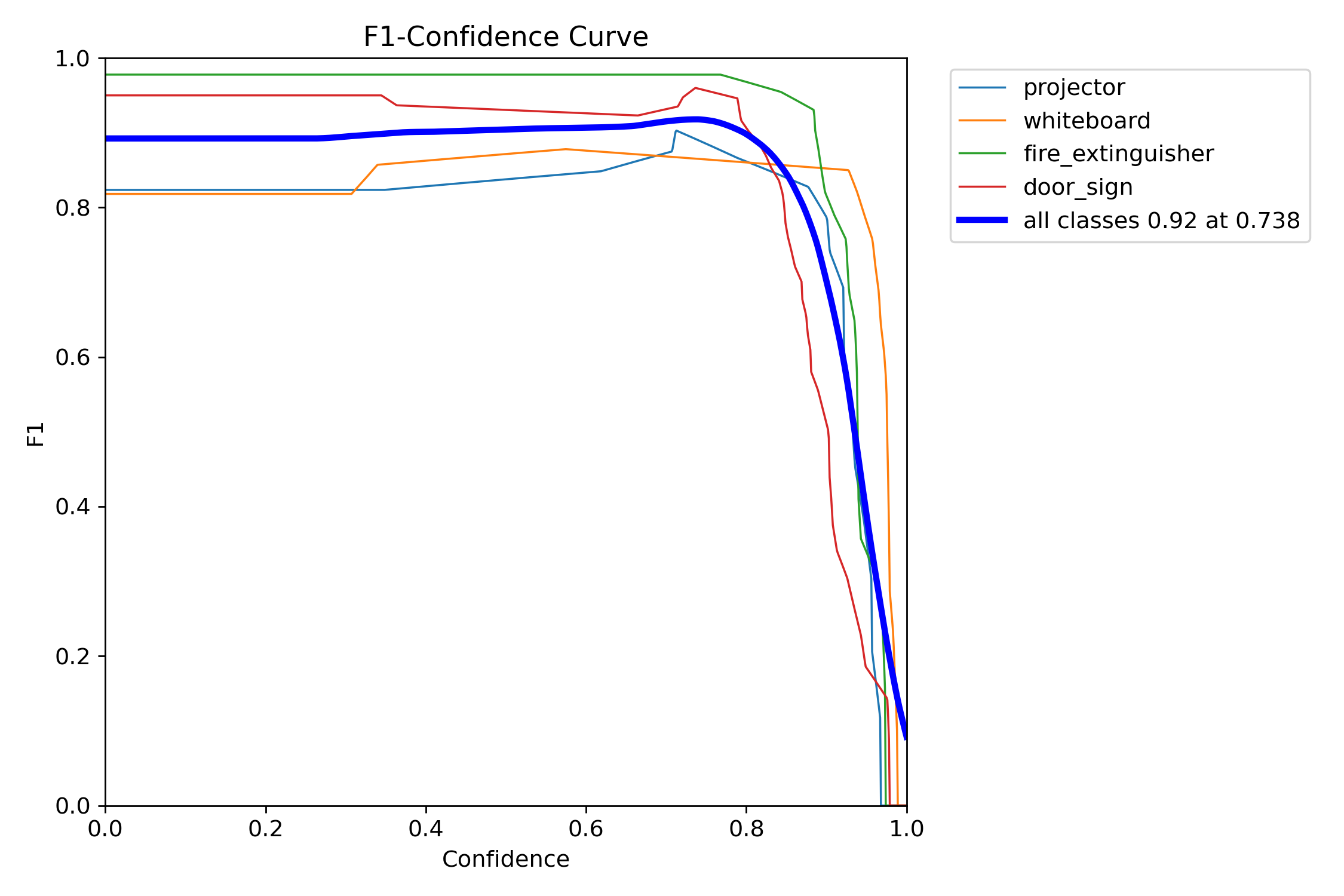

Figure 17. F1 score vs. confidence threshold.

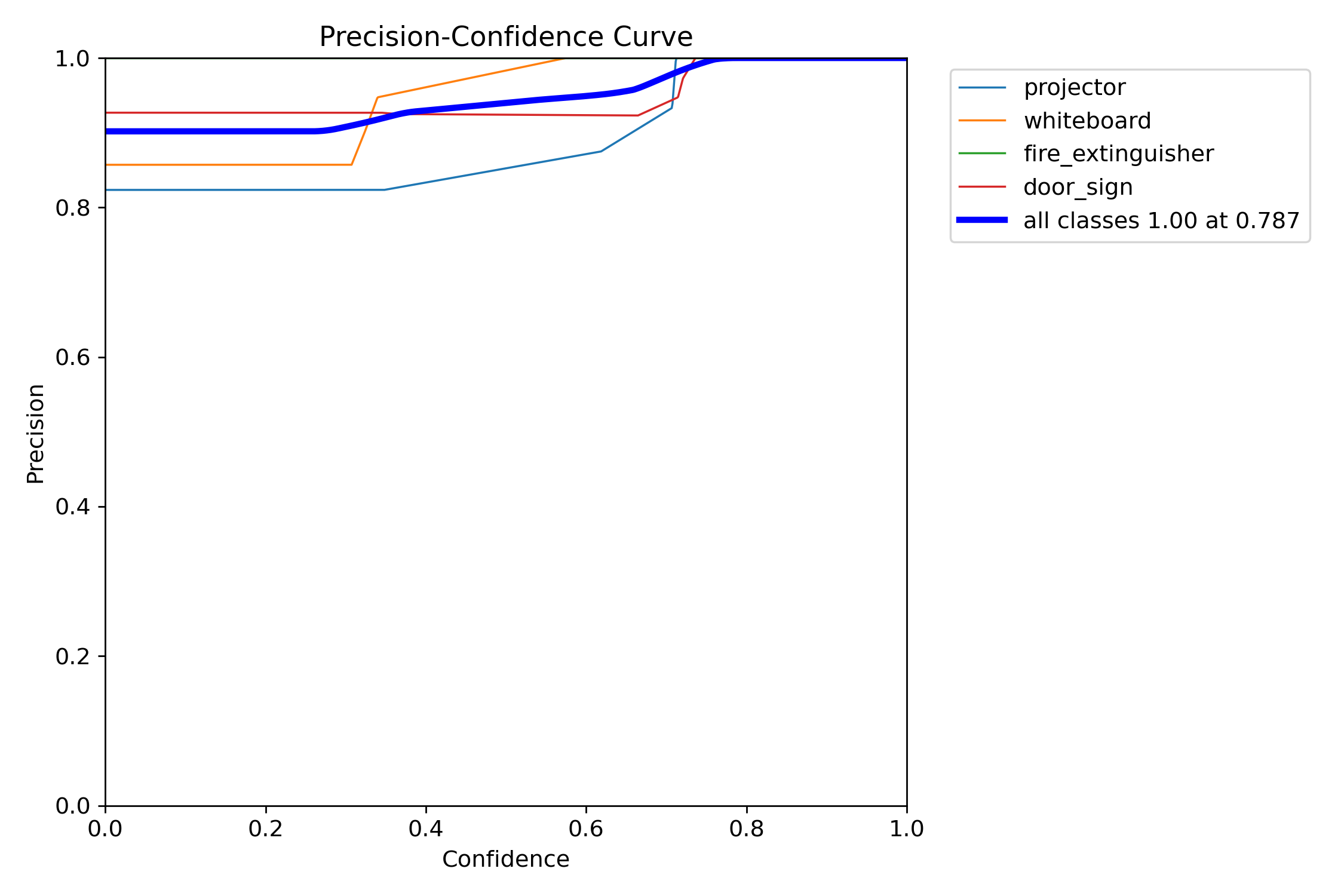

Precision vs confidence
Figure 15. Precision vs. confidence — all classes at P=1.0 above conf≈0.4.

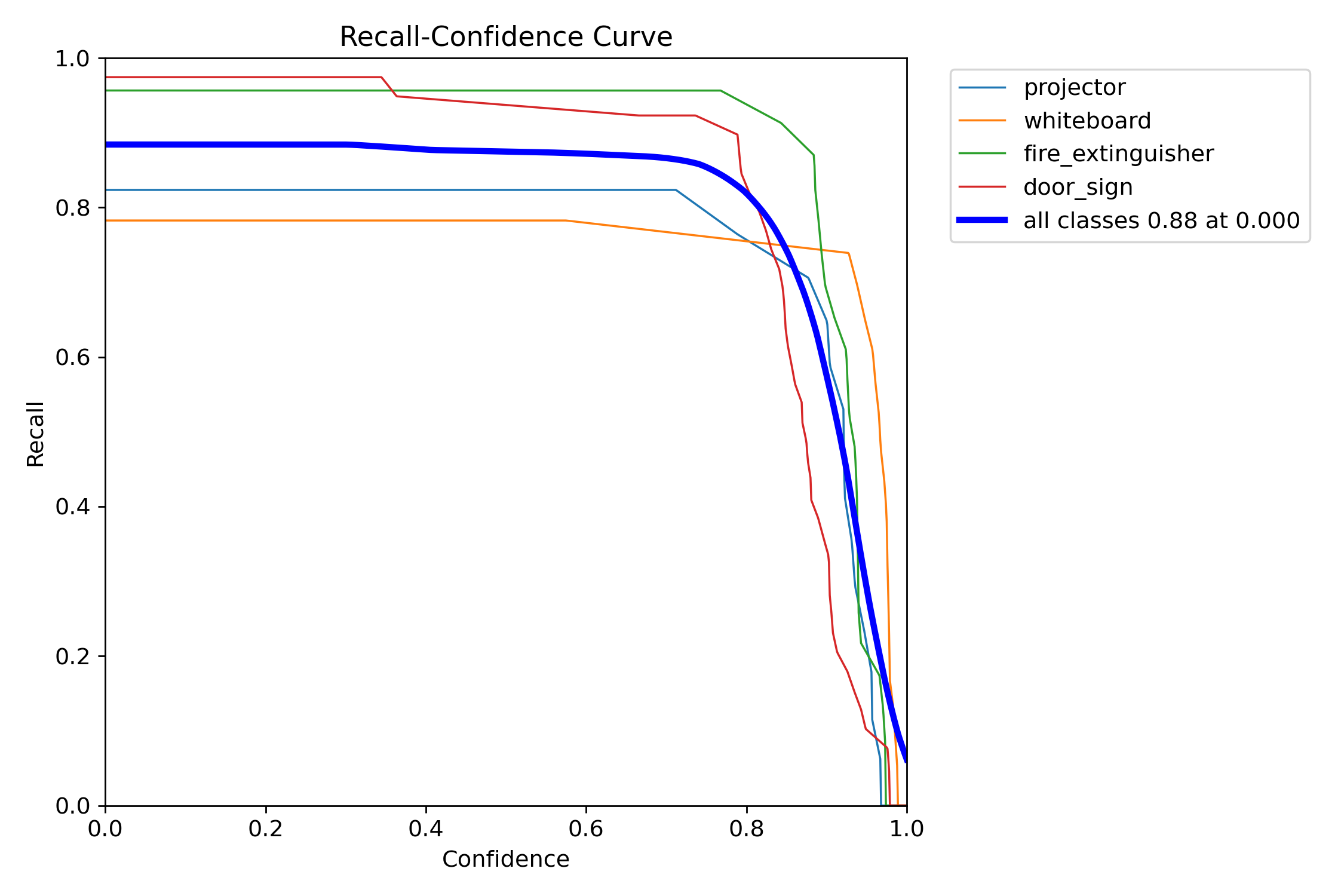

Recall vs confidence
Figure 16. Recall vs. confidence threshold.

Qualitative Predictions

Qualitative predictions grid
Figure 18. 2×4 grid of test-set images with predicted bounding boxes and confidence scores overlaid.

Ultralytics Results Dashboard

Ultralytics results dashboard

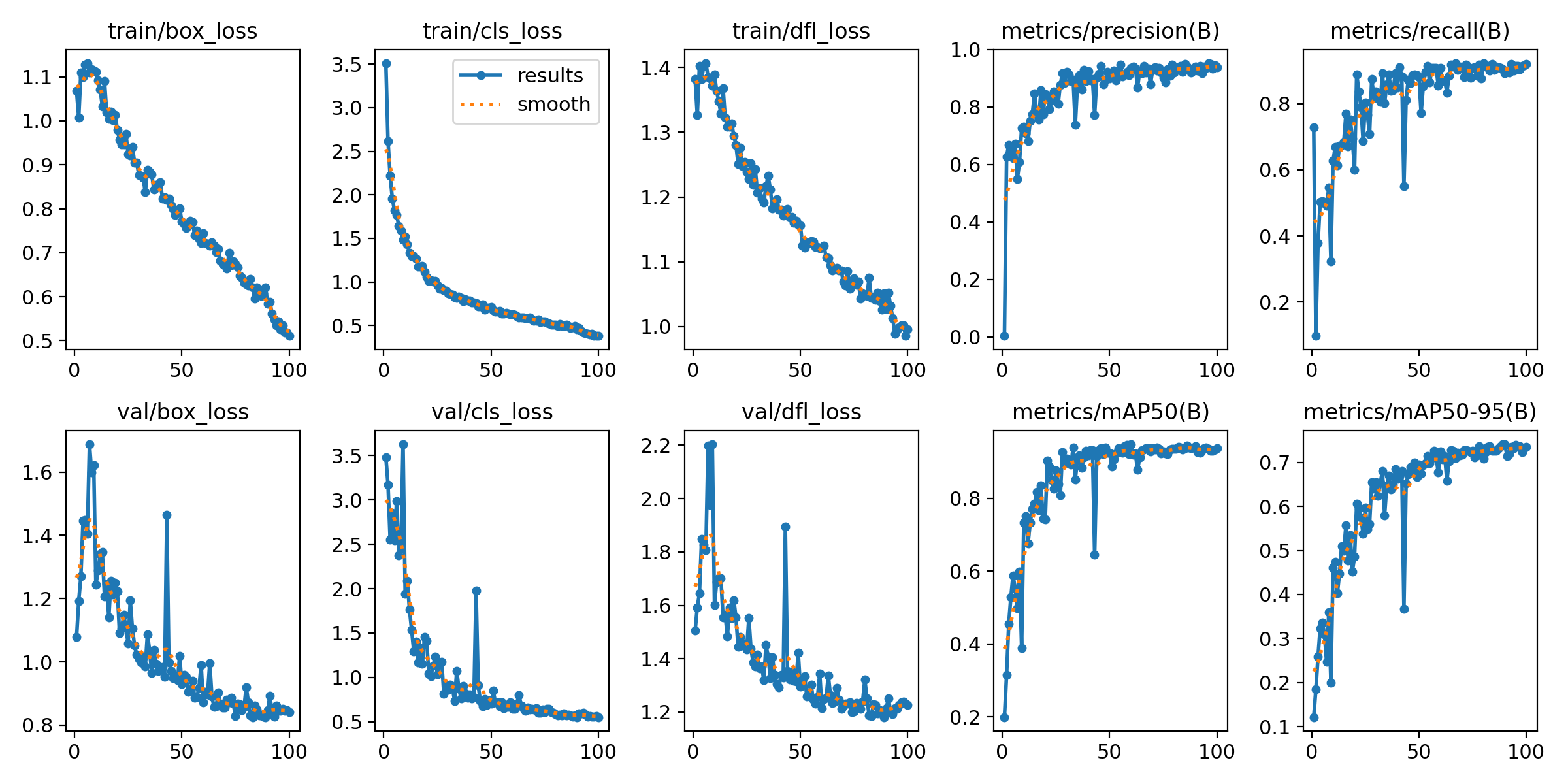

Figure 10. 10-subplot training dashboard — loss curves, precision, recall, mAP across 100 epochs.
07 · Discussion

Strengths & Limitations

✓ Zero False Positives
Macro precision = 1.0 across all classes. The model never hallucinates detections above the 0.25 threshold — critical for inventory and safety-audit applications where false alarms erode trust.
✓ Strong mAP@0.5
93.3% mAP@0.5 on 80 test images with a 2.6M parameter model. Fine-tuning on a narrow four-class domain closes the gap from COCO's 39.5% dramatically.
✓ Safety-Critical Near-Saturation
fire_extinguisher (97.8%) and door_sign (98.2%) mAP@0.5 — the highest-value outcome for compliance auditing. Visually distinctive appearance aids detection.
✓ Edge-Ready Weight Size
22 MB PyTorch → 11 MB ONNX. ONNX export enables TensorRT, OpenVINO, and CoreML deployment without a PyTorch runtime dependency.
⚠ Projector/Whiteboard Recall
Recall of 0.804 / 0.763 respectively. High intra-class variance: ceiling-mounted vs. desktop projectors, reflective whiteboards with/without text. Lowest boxes/image ratio (~0.82).
⚠ mAP@0.5:0.95 Gap
13.7-point gap between mAP@0.5 (0.933) and mAP@0.5:0.95 (0.796). The lightweight regression head lacks capacity for sub-pixel box refinement. YOLOv11s or cascaded refinement would close this.
⚠ Small Dataset
560 training images for 4 classes. 4.4% empty-label rate reduces effective positives. Scaling to ~500 images per class would likely push projector and whiteboard recall above 0.90.
⚠ Single Domain
All images from similar institutional settings. Performance on unusual campus layouts, diverse lighting, or non-standard equipment may degrade due to domain shift.

Improvement Directions

Issue Suggested Fix
Low projector/whiteboard recall 100–200 additional images per class from varied viewpoints and lighting
mAP@0.5:0.95 gap Upgrade to YOLOv11s; or add test-time augmentation (TTA)
Potential domain shift Add online images from different institutions; apply colour jitter at inference
Overfitting after epoch 60 Add dropout (currently 0.0) or stronger weight decay
08 · Deployment

Inference & Export

Live Inference Modes — NB06

🖼
Single Image
Load, infer, display detection with latency measurement
📁
Batch / Folder
Per-class counts and throughput (images/s) over directory
🎬
Video File
Frame-by-frame annotation + annotated video + preview grid
📷
Webcam
Live feed with real-time overlay; stop via widget button
⚙
CONF_THRESH = 0.25 · IMGSZ = 640 · device auto-selected (CUDA → MPS → CPU)

ONNX Export — NB07

ONNX opset12
Dynamic axesTrue
SimplifyTrue
Size reduction~50%
.pt
best.pt
PyTorch checkpoint · full training state
~22 MB
ONNX
best.onnx
Framework-agnostic · TensorRT / OpenVINO / CoreML
~11 MB
Conclusion

A complete object detection pipeline for four campus infrastructure classes was built and evaluated. YOLOv11n achieves mAP@0.5 = 93.3% with zero false positives at the chosen confidence threshold. Safety-critical classes fire_extinguisher and door_sign are detected at near-saturation accuracy (mAP@0.5 > 97.8%). Both PyTorch and ONNX weights are production-ready for real-time campus deployment.
